AiM SmartyCam 7-Pin to 5-Pin CAN Cable with Microphone Jack, 4M for Motorsports Electronics
AiM SmartyCam 7-Pin to 5-Pin CAN Cable with Microphone Jack, 4M for Motorsports Electronics
AiM SmartyCam 7-Pin to 5-Pin CAN Cable with Microphone Jack, 4M for Motorsports Electronics is part of a communications setup where connector type, radio/intercom compatibility, and mounting details should be matched before ordering. Review the preserved manufacturer details below for the exact application.
PMB Performance added this context to make the communications component easier to compare while keeping the original product information available.
AiM Patch Cables With 3.5mm Microphone Input
The original AiM SmartyCam, the SmartyCam HD Rev 2, and the SmartyCam HD GP Rev 2.1 all have an internal microphone to capture great racing sound, but it does limit your mic placement options. This specially-designed cable has a 3.5mm mono input jack to connect a second external microphone to your SmartyCam. The input from this jack is automatically mixed with the sound from the SmartyCam's internal microphone.
SmartyCam Microphone Cable Fitment
- Original SmartyCam (2009-13, with the viewing screen on top) Exp port to AiM dash/logger or SMC Bridge
- SmartyCam HD Rev 2 or later (2015+) Exp port to AiM dash/logger or SMC Bridge
- SmartyCam HD GP Rev 2.1 or earlier (to 2018) Exp port to AiM dash/logger or SMC Bridge

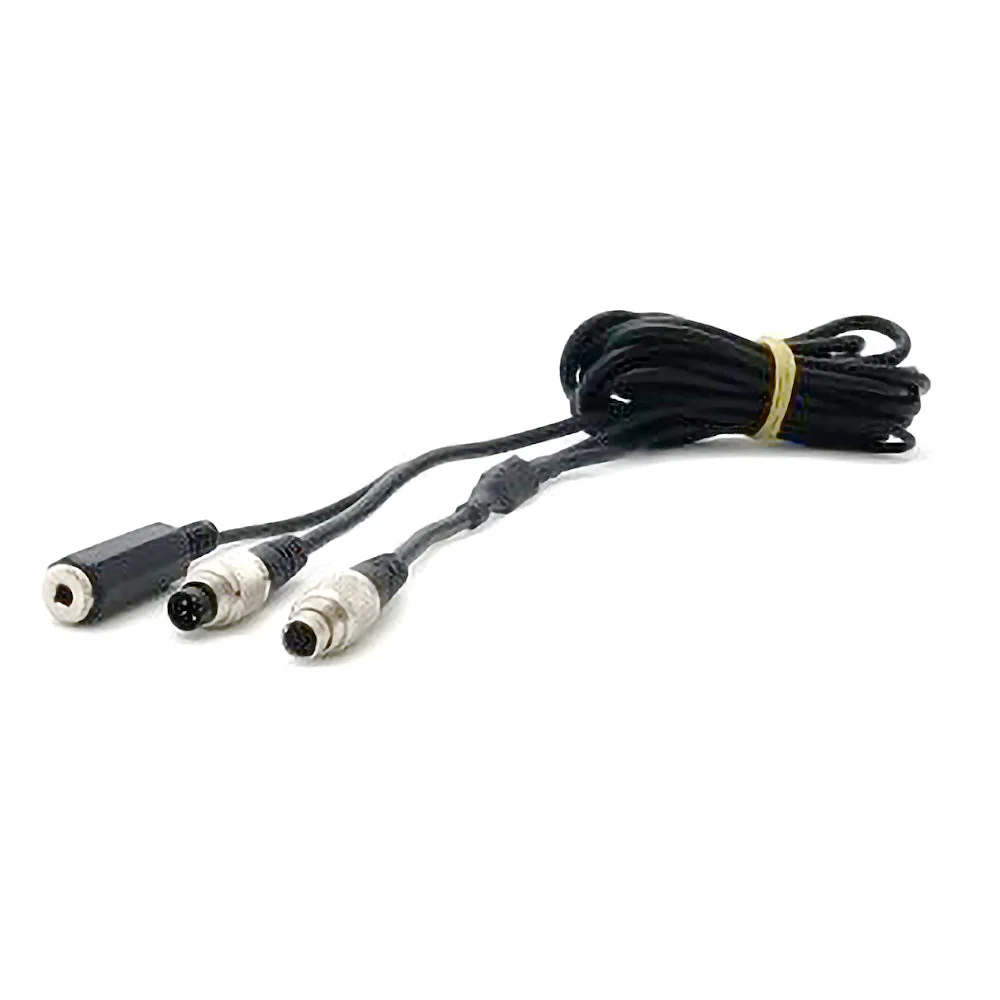

AiM SmartyCam CAN Cable with Microphone Jack, 4M Details
- Manufacturer: AiM Sports
- Manufacturer part number:Â V02566300
- Alternate part number: MC-552
- Dash, Solo DL, Solo2 DL End: 5 Pin Male 712
- SmartyCam End: 7 Pin Male 712
- Microphone jack: 3.5mm female mono
- Cable length: 4 meters (13.1 feet)

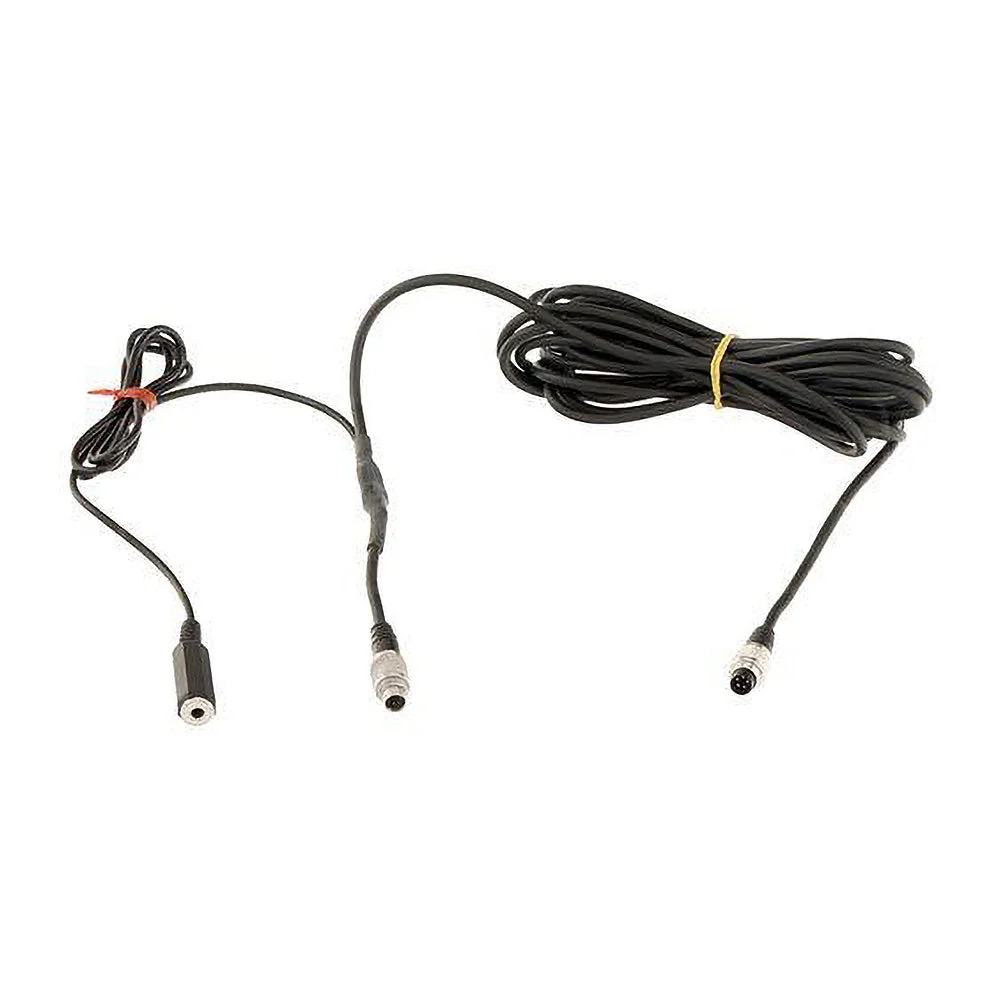

- Length from 7 pin 712 to "Y" Adapter: 50mm
- Length from Y adapter to 5 pin 712" 4 Meter
- Length from Y adapter to microphone 3.5mm female jack: 900mm
The 7-pin 712 connector plugs into the CAN port on the original AiM SmartyCam. A 5-pin connector on the other end connects your SmartyCam to your AiM data logger, SMC Bridge, etc. Measures four meters (13..1 feet) long. 3.5mm mono microphone jack is attached to the lead.
This cable is not compatible with the first SmartyCam HD, which has a 5-pin plug.
